Aqua Flo XP2e 56FR, 2.5 HP, 2" plumbing wet end 91041925-000 for XP2e spa pumps.

AquaFlo/Gecko 2.5HP Wet End 91041925-000 is a side discharge, 2"mbt suction/discharge connections, 56 frame wet end for XP2/XP2E pumps.

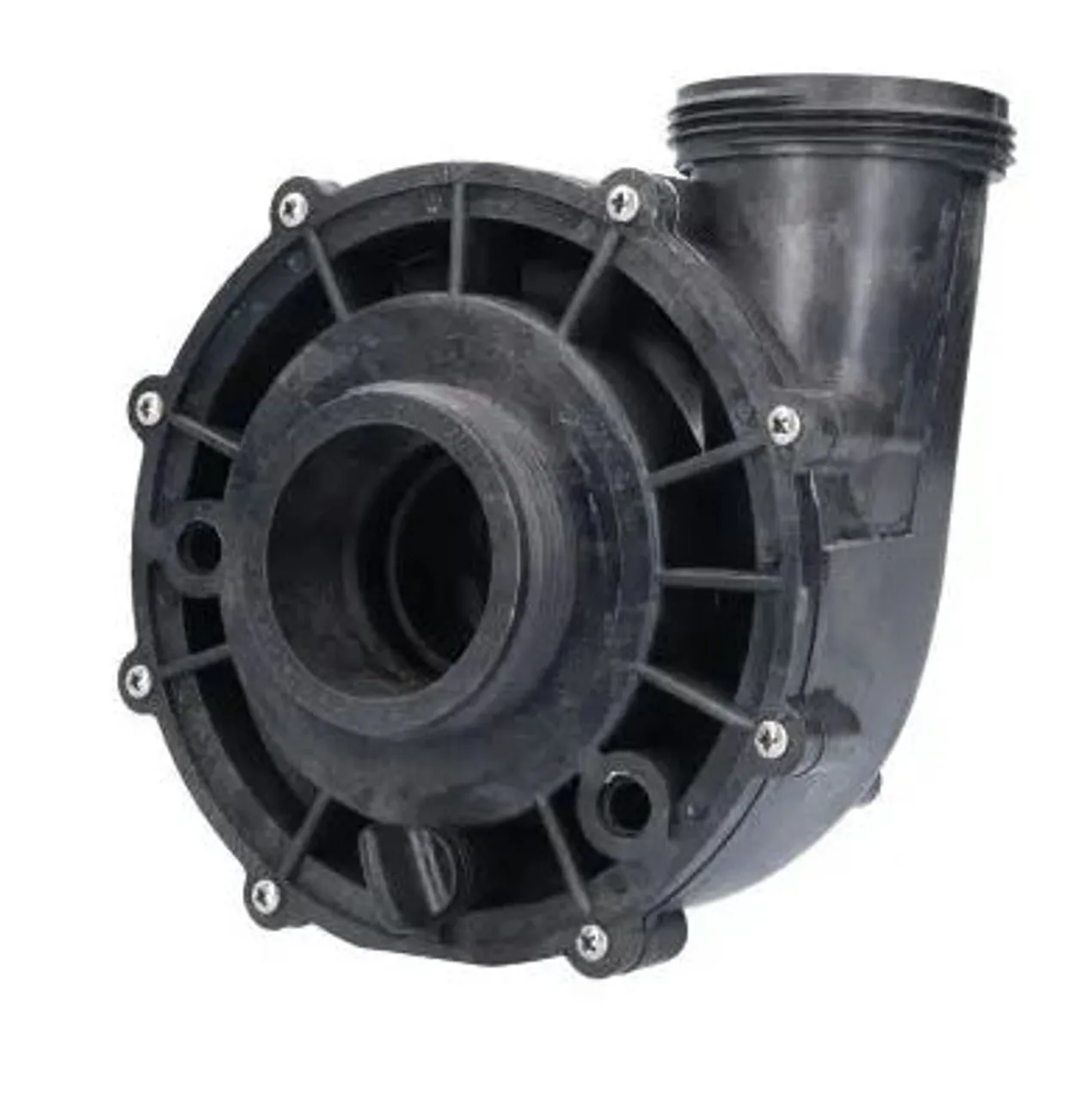

Complete wet end.

6.3 Volute

This wet end is the 6.3 Volute with 4 1/8" bolt spacing.

This wet end is used with a 3.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.

Motor B2234 and unions 52272000 sold separately.

Note: This wet end will not fit an LX motor.

In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. Aqua Flo XP2e 2.5 HP 2" 56 Frame Pump Wet End 91041925-000
